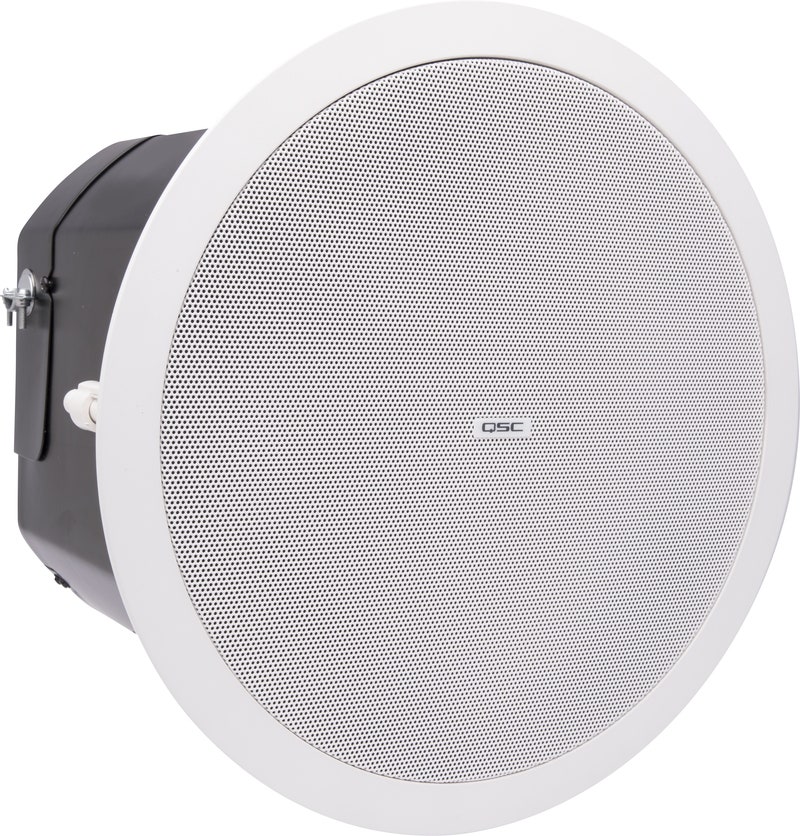

The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings.
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications.
- Refined depth and clarity even at low volume settings.
- Mix-and-match capable, any subwoofer with any satellite in the AD Series SUB/SAT line.
- Dual voice coil for improved thermal dissipation and higher output
- Low-saturation and low-loss 70 / 100 V transformers with 4 Ω bypass.
- Snap-fit magnetic grill.
- 4x built-in high-pass filtered outputs
- Locking 4-pole Euroblock connectors
- Removable conduit cover plate
- Blemish-free removable logo
- 4x double stepped, long travel dog-ear blind mount system
- Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
- Complete EASE, CF2, CAD, & BIM information available online
- UL1480 and UL2043 certified
Specifications:
- LF transducer 6.5" (165 mm) dual voice-coil weather treated paper cone woofer
- Effective frequency range 45 Hz – 150 Hz
- Rated noise power / voltage 100 W / 20 V (rms)
- Sensitivity [dB] (rated @1 W, 1 m) 86
- Coverage (-6 dB) Omni
- Maximum SPL [dB] (continuous / peak) 100 / 106
- Recommended amplifier 100 W
- Transformer taps / impedance Bypass: 4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
- Connectors Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
- Enclosure material ABS baffle on powder coated steel back can
- Grill material Powder coated steel
- Ingress protection IP-34
- Operating environment Designed for indoor use
- Operating temperature range: -20 to 50° C
- Cutout dimension: Ø 305 mm
- Net weight: 8.7 kg
- Product dimensions: Ø 340 x 254 mm
- Included accessories C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
- Safety agency UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces.
- Transformer UL registered per UL1876, ROHS, CE compliant.
- Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
