Rolls MX34C

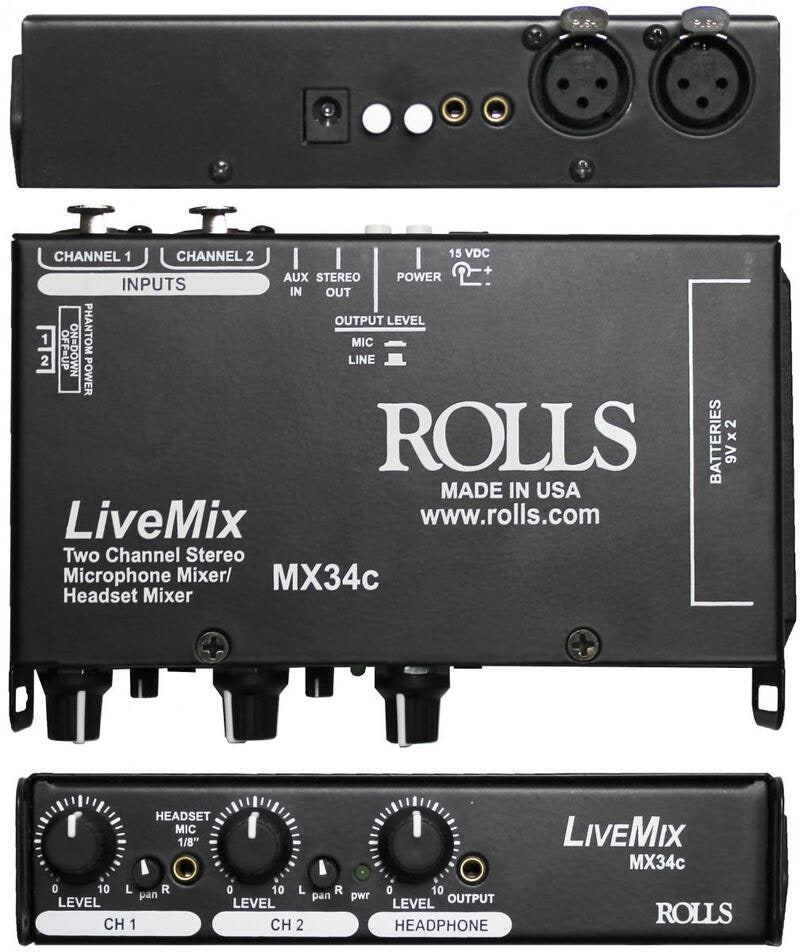

The MX34c LiveMix - two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. The MX34c is a two channel microphone mixer with balanced XLR inputs, phantom power, and stereo 1/8" (3.5mm) outputs. The 3.5mm output may be switched either mic or line level. It has a stereo 1/8" (3.5mm) Auxiliary input for connection to any stereo line-level source such as a phone, tablet or CD player. A 3.5mm headset mic in on the front for narration. Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal. Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast.

• Input Impedance: Mic - 600 Ohms or greater (XLR), Aux - 47K stereo (3.5mm)
• Output Impedance: 50 Ohms
• THD + Noise: .02%
• S/N Ratio: 110 dB
• Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
• Max Output Level: + 14 dB
• Max Input Level: +20 dB
• Max Gain: +70 dB
• Batteries: 2 X 9V Alkaline
• Current Draw: 30 mA
• Phantom Power: +18 VDC
• Input Connectors: 2 Female XLR, 1/8" (3.5mm)
• Output connectors: 3.5mm Stereo Main Out, 3.5mm Headphone
• DC Power Jack: (5.5mm X 2.1mm Tip Negative)
• Size: 6.3"w x 3.7"d x 1.4"h
• Weight: 1 lbs.

• 9V Battery or AC adapter operation
• 2 Mic Inputs
• +18VDC Phantom Power
• 3.5mm Stereo Output
• 3.5mm Stereo Headphone Output
• Pan control on each channel
• Auxiliary 3.5mm Input
• 3.5mm mic in jack for headset or other mic
