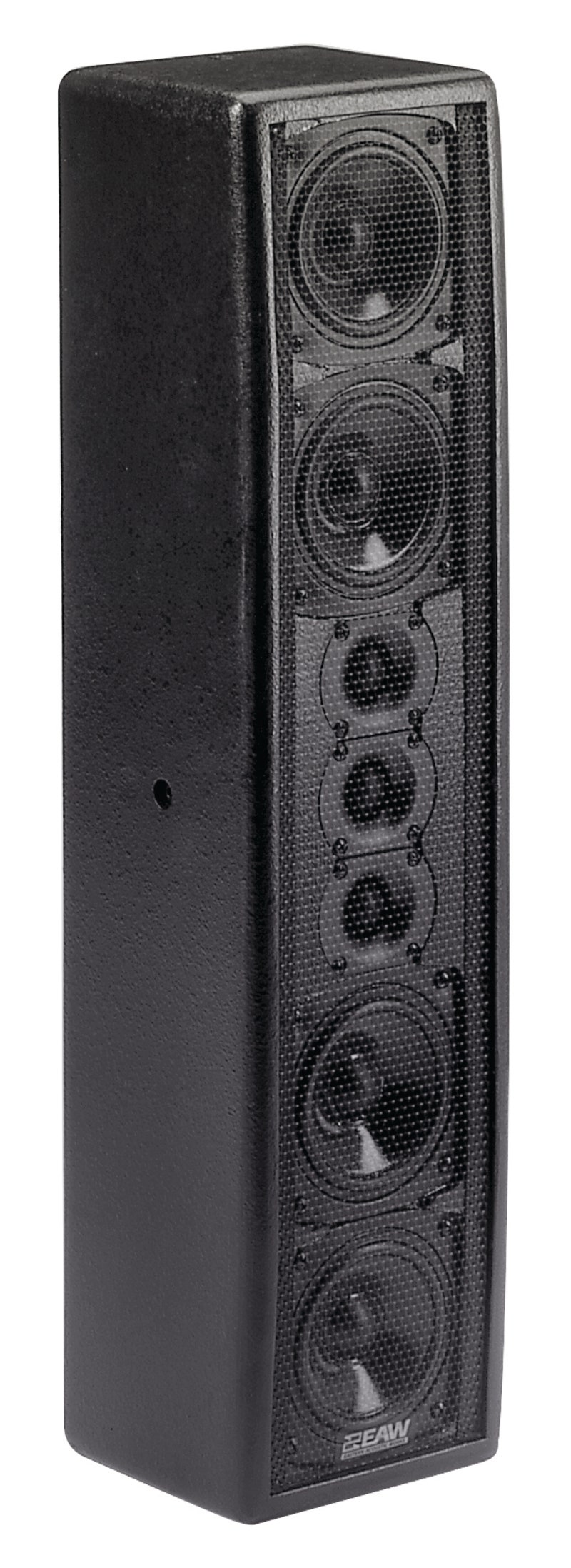

EAW LS432i Black

EAW’s LS432i line source loudspeaker system brings the classic column speaker up-to-date. Sophisticated frequency shading and all-pass filtering integrates the 4x 4-in woofers and 3x 1-in soft dome tweeters, maximizing the benefits of line source coupling while eliminating grading lobes. The system maintains a well behaved nominal vertical coverage pattern of 20° to below 1000 Hz. Even at 500 Hz, the vertical pattern is still 80° . With the enclosure baffle defining a gentle arc, the drivers form a curved line source to help prevent the vertical pattern from collapsing in the crossover region.

High performance Column Array(tm) system

4x 4-in LF/3x 1-in tweeters

Line array effects create consistent 20° x 140° coverage
Dimensions

Height 660

Width 159

Depth (max) 152

Depth (top) 146 Depth (bottom) 146

Weight: Net Weight 9.1 kg
