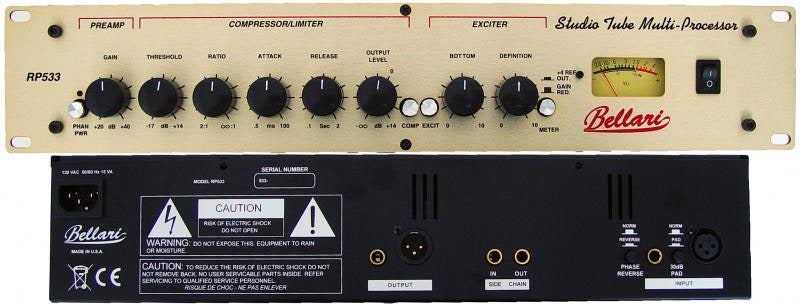

BELLARI RP533 Studio Tube Multi-Processor

The RP533 uses all the powerful circuitry included in other popular Bellari rack-mounts, in a single channel unit. Each process, except the preamp, can be individually bypassed. The RP533 is ideal for vocals, instruments, or any application where signal preamplification and dynamics processing is required, all with warm and inviting sounds.

• Warm, silky tube preamplification
• Smooth, natural compression
• Sonic Exciter, frequency enhancement
• All tube gain circuitry with proper high-voltage plate voltages
• Transformer balanced input
• 1/4” and XLR inputs and outputs
• Calibrated metering - switchable in the circuit path
• +48 Volt Phantom Power
• Side Chain for direct access to the compressor's detector circuits
• Frequency Response 20Hz - 40kHz +/-3dB
• Input Impedance 600 Ω balanced 1M Ω unbalanced
• THD + Noise <0.1% typical Noise Floor -90 dB
• Indicators Phantom Power LED Analog Meter
• Input/Output jacks XLR balanced 1/4" unbalanced 1/4" unbal. Side Chain
• Dimensions 3" x 6" x 19" (180 X 162 X 482 mm)
• Weight 7.5 lbs. (3.4 Kg) Power 120VAC (230VAC) 15VA
